VRDD Thread Pilot Dioperasikan Lock Valve Hydraulic Dual Cartridge

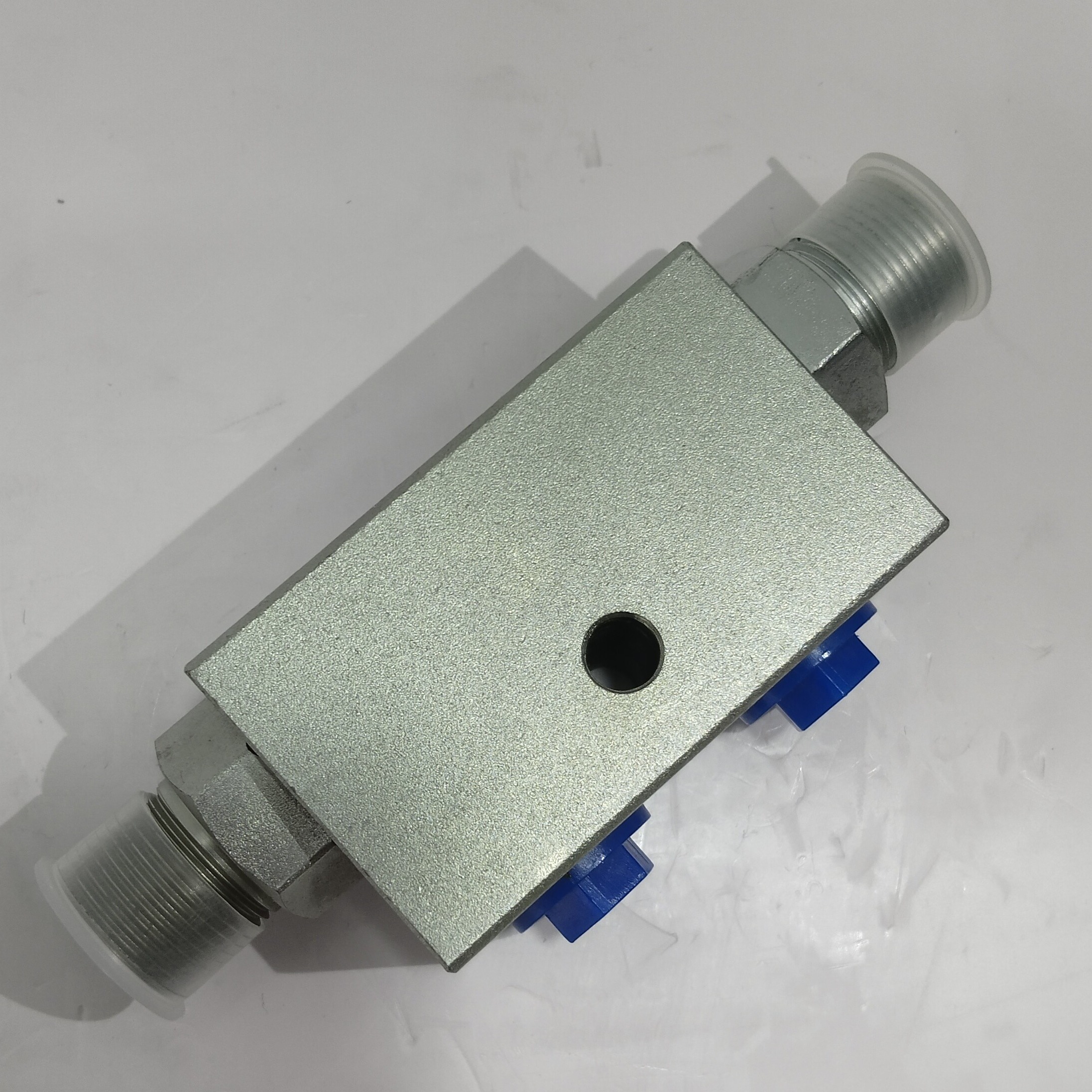

Gambar produk:

VRDD katup hidraulik dual cartridge dengan G1/4 G1/2 G3/4 G3/8 ukuran benang pilot dioperasikan katup kunci

A hydraulic lock-out device for use with a hydraulic motor or jack that permits smooth operation of the piston and ram of the hydraulic motor during the working stroke and return stroke without surging or interruptions, dan beroperasi untuk mengisolasi motor hidrolik dari sistem cairan ketika ram masih dan di bawah beban. A check valve associated with a first chamber of the device is operable to admit fluid under pressure to a first end of the hydraulic cylinder to move the piston from the first end toward the second end of the cylinder during a working strokeSebuah katup kedua yang terkait dengan ruang kedua dari perangkat menerima cairan ke ujung kedua silinder untuk pukulan kembali piston dan ram. Introduction of hydraulic fluid under pressure into the second chamber of the device is operable to move an actuating plunger and stem in the first chamber to open the first check valve to permit flow of hydraulic fluid from the first end of the hydraulic cylinder during the return stroke of the hydraulic piston. The permissible rate of flow of hydraulic fluid from the second valve to the second end of the hydraulic cylinder is not substantially influenced by the position of the first valve such that surging and pulsations are eliminated during the return stroke of the hydraulic piston in the hydraulic cylinder. Ketika ram hidrolik masih dan di bawah beban, klep cek pertama ditutup untuk mengisolasi atau mengunci motor hidrolik dari sistem cairan.

Data teknis produk:

Produk gambar nyata:

Pameran Perusahaan:

Sertifikat kami:

Proses pengolahan produk:

Pabrik dan bengkel baru kami:

Gudang kami:

Pengiriman:

Berbagai Seri Produk, lebih detail silahkan hubungi kami langsung:

Klep hidraulik:

Selamat datang untuk kunjungan dan pertanyaan!
